![tenzometry](/images/cs/rucni-davkovaci-vaha-av21r.png)
Weighing and dosing of goods
Max. output 15 doses per minute |
Max. dose volume 12 liters |
Max. weighing capacity 6 kilograms |
Preset 99 presets |
Power supply 230 V + compressed air |
Delivered more than 100 customers |
![tenzometry](/images/tenzometry.jpg)
Pair of weight sensors
… Ensures stable attachment of the dosing pocket and hight dosing accuracy
![ovladani](/images/cs/ovladani.jpg)

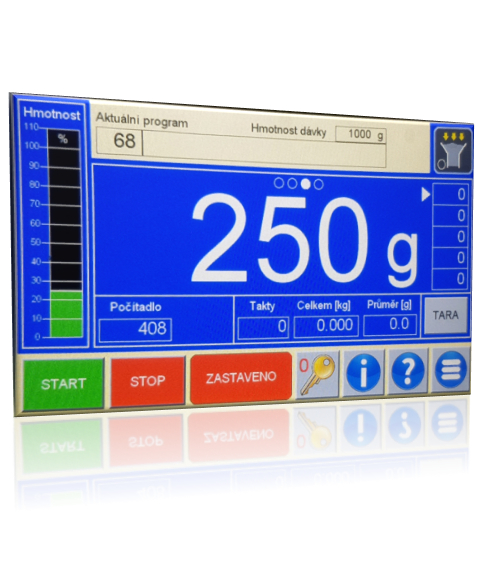

Control
- 7“ Touch screen
- 4 optional work screens, show the operating data you need
- Graphic guide to setting up a new product
- Clear traffic statistics
- Operating instructions integrated into the screens
- Cleaning mode
- Automatic tare of adhesive products is performed after a selected number of weighings
Video
... watch the video and find out the practical benefits of a dosing weigher!
![novy obal do 30 sekund](/images/cs/novy-obal-do-30-sekund.jpg)

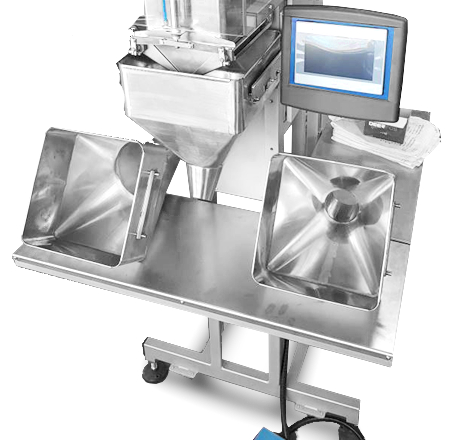

New packaging within 30 seconds
Thanks to the bottom attachment of the hopper, you can switch to another package within 30 seconds ( changing the hopper, adjusting the table height and switchinh to another program).
![no picture](/images/cs/3-zakladni-velikosti-ramu.png)

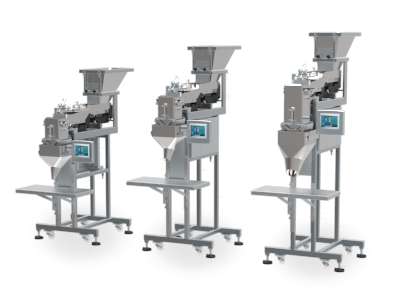

3 basic frame sizes
... for staff sitting or standing up, we can also design a tailor-made frame for you.
![vylepsena ochrana kapsy](/images/cs/vylepsena-ochrana-kapsy.jpg)
Improved pocket protection
… protects against accidental overload.
![antivibracni system](/images/cs/antivibracni-system.jpg)
Anti-vibration system
… for a quiet pocket even with the disposing of piece products.
![demontaz dilu bez pouziti naradi](/images/cs/demontaz-dilu-bez-pouziti-naradi.jpg)
Tool-free disassembly of parts
… Saves your time and simplifies maintenance.
![mobilni provedeni](/images/cs/mobilni-provedeni.jpg)

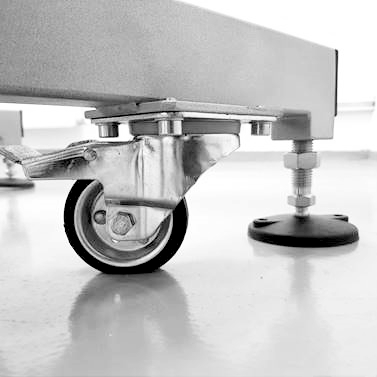

Mobile design
… including a brake and fixed locking for accurate weighing.
![nozni ovladac](/images/cs/nozni-ovladac.jpg)
Foot control
… ensures daily professional use.
![zdravotne nezavadne](/images/cs/zdravotne-nezavadne.jpg)
Harmless to health
= health certificate … areas that are in contact with the goods are documented by a health certificate.
Technical parameters
(Doses/min.) | do 30 |
Weighing range | 6 - 7000 g |
Weighing pocket volume (I) | 7,0 |
Dose accuracy | the standard "e" |
Hopper volume (I) | 30 |
Power voltage | 230 V - 50 Hz |
Air consumption at 0.6 MPa per dose (I) | 0,1 |
Noise (dB) | 75 |
Machine weight (kg) | 250 |
Size L x H x W (mm) | 1885x860x1960 |
*The performence depends on the ssize of the batch, the type of goods dispensed and the skill of the operator.
Expansion options
![hlucne produkty](/images/cs/hlucne-produkty.jpg)

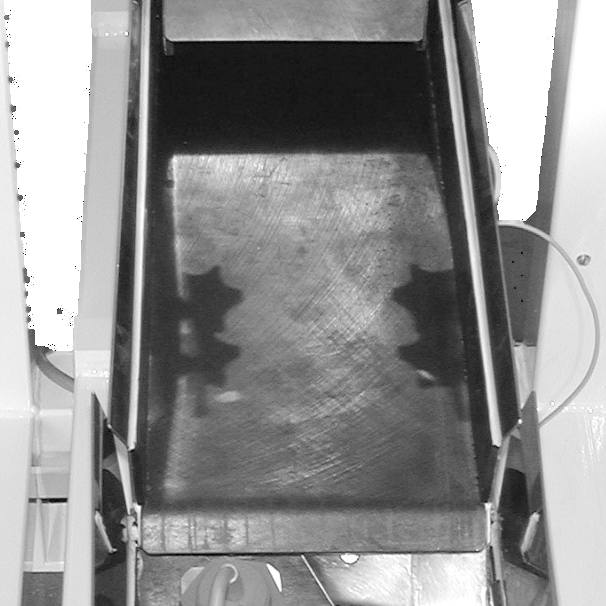

Noisy products
For noisy products, such as nuts, screws,a noise reduction and treatments are applied.
![prasne produkty](/images/cs/prasne-produkty.jpg)

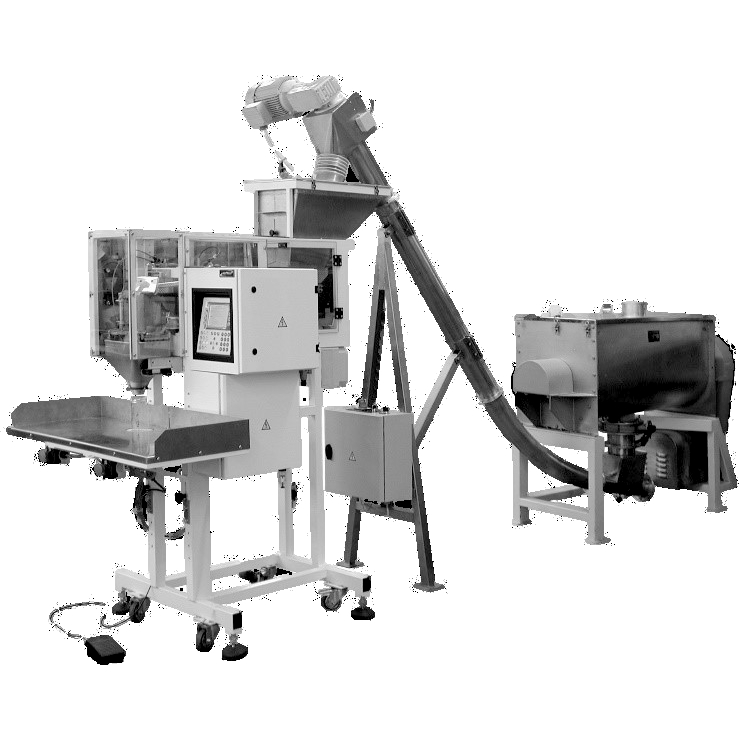

Dusty products
… covering the entire weight, including the entrance to the hopper with prepatation for suction
![hlucne produkty](/images/no-picture.png)
Waterproof design
… cleaning the contact surfaces with water to ensure maximum hygiene.
![lepive produkty](/images/cs/lepive-produkty.jpg)

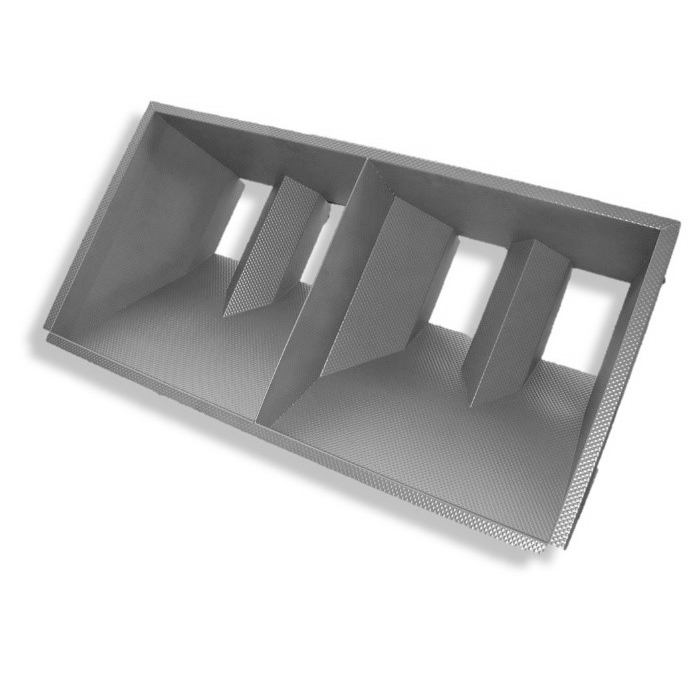

Adhesive products
Contact surfaces can be provided with a teflon or a nanotechnological protection surface, wich reduces the adhesion of the product.
![hlucne produkty](/images/no-picture.png)
Frozen products
… adjustment of the weight for refrigeration plants
![snizeni adheze](/images/cs/snizeni-adheze.jpg)
Reduction of adhesion
Contact surfaces can be provided with a teflon or nanotechnological surface, which reduce the adhesion of the procut.
![zvyseni vykonu](/images/cs/zvyseni-vykonu.jpg)

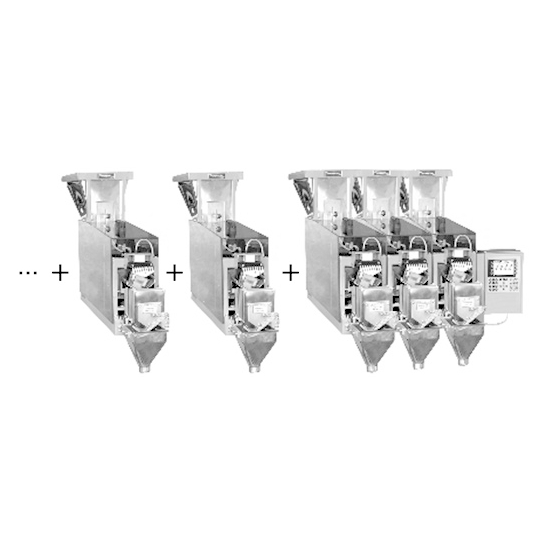

Performance increase
… modular solution allows gradual increase of performance.
![mixovani produktu](/images/cs/mixovani-produktu.jpg)

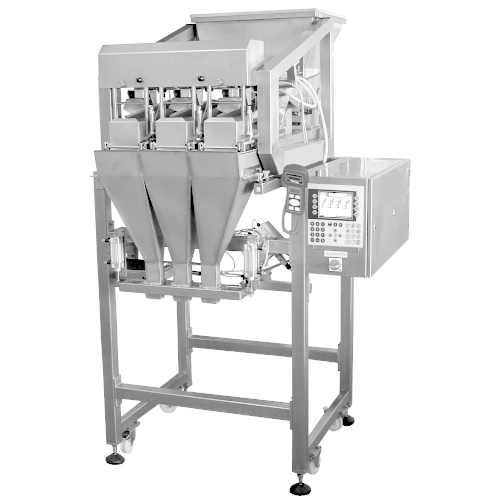

Product mixing
… by adding a additional weighing stream, more types of products can be dispensed into the package.
