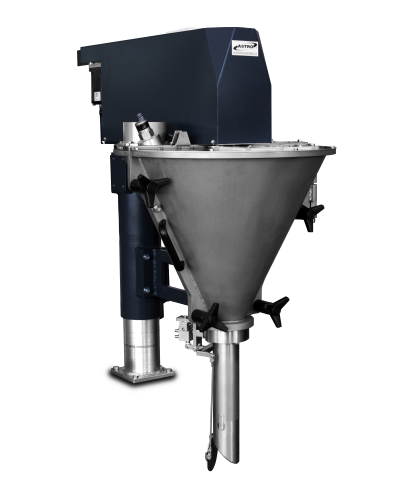

auger fillers sd

The auger fillers are designed for precise dosing of dusty, powdered, badly loose and some granulated products e.g.: ground coffee, pudding powder, flour, powdered sugar, gypsum, washing powders, color powder, etc.

Wide range of applications

This dosing device is in standard developed as volumetric dosing device for bagging machines of MH type.

Fillers can be adjusted as dosing device for the packaging machine of other producers, or other construction.

For refilling of the feeding hopper is optimal to use feeding conveyor VD5.

vertikale Verpackungsmaschine mit Schneckendosierer Füllrohre für Schneckendosierer

High variability of the auger fillers

Technical parameters

Filler type SD1bb SD2bb SD2bb SD3bb
Output* to 70 doses/min. to 110 doses/min. to 70 doses/min. to 90 doses/min.
Dose volume 10 ml - 3000 ml 10 ml - 6000 ml 1 l - 20 l 10 ml - 6000 ml
Power supply 3 x 230 V/400 V - 50 Hz 3 x 230 V/400 V - 50 Hz 3 x 230 V/400 V - 50 Hz 3 x 230 V/400 V - 50 Hz
Power 1,4 kW 2,8 kW 3,5 kW 1,4 kW
Noise to 75 dB to 75 dB to 75 dB to 75 dB
Weight 150 kg 250 kg 320 kg 250 kg
Air pressure 0,4 - 0,6 MPa 0,4 - 0,6 MPa 0,4 - 0,6 MPa 0,4 - 0,6 MPa
Air consumption at 0,6 MPa 0,2 l/dose 0,2 l/dose 0,4 l/dose 0,2 l/dose
Machine dimensions H 940 x W 670 x L 1150 mm H 970 x W 800 x L 1350 mm H 1300 x W 870 x L 1450 mm H 970 x W 800 x L 1350 mm
Hopper volume 10 l 35 l 75 l 35 l

Description

Fillers type SD1bb SD2bb SD2bb SD3bb
supporting frame, electromechanical drive, distributor, hopper and tube with screw
progressive retardation of screw
sensor insuring stable level of goods in hopper
mixer ensuring permanent looseness of goods in hopper
areas in contact with goods are made in stainless steel
split hopper for easy cleaning

Fillers advantages

Filler type SD1bb SD2bb SD2bb SD3bb
adaptive system (self-adjustment of portion)
adjustment of portion during operation
easy and quick replacement of the tube with auger

Modifications

Filler type SD1bb SD2bb SD2bb SD3bb
regulation of revolutions speed of dosing auger
different types of closing of auger screw
integrated controls of SD2bb with machine MH
