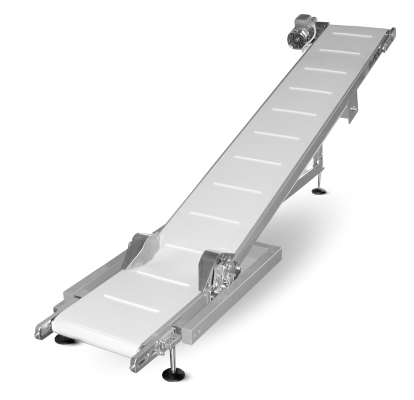

Discharge conveyors are used to transport the finished bags, filled sacks, jars, buckets and other containers for example from the packaging machine or manual dosing equipment.
Discharge conveyors are used to transport the finished bags, filled sacks, jars, buckets and other containers for example from the packaging machine or manual dosing equipment.
 |
 |
| OD5 |
OD5z |
|
 |
| Technical parameters |
|
|
|
| Conveyor type |
OD4 250 |
OD4 500 |
OD5 |
| Conveyor belt width (mm) |
250 |
500 |
from 250 to 500 |
| Belt speed (m/min.) |
26 |
26 |
13 |
| Conveying height (mm) |
od 700 do 1100
|
od 700 do 1100
|
|
| Adjustable conveyor height (mm) |
|
|
from 380 to 980 |
| Power supply |
3 x 230 V/400 V - 50Hz |
3 x 230 V/400 V - 50Hz |
3 x 230 V/400 V - 50Hz |
| Power (W) |
180 |
180 |
180 |
| Noise (dB) |
up to 50 |
do 50 |
do 50 |
| Conveyor weight (kg) |
80 (100) |
80 (100) |
from 80 to 100 |
| Dimensions H x W x L (mm) |
700-1100x513x2150 |
700-1100x513x2150 |
...x470x2250 |
| Products |
|
|
|
| Conveyor type |
OD4 250 |
OD4 500 |
OD5 |
| bags |
● |
● |
● |
| sacks |
● |
● |
● |
| jars |
|
|
● |
| glasses |
|
|
● |
| buckets |
|
|
● |
| Advantages |
|
|
|
| Conveyor type |
OD4 250 |
OD4 500 |
OD5 |
| robust construction |
● |
● |
● |
| wide possibility of use |
● |
● |
● |
| Modification |
|
|
|
| Conveyor type |
OD4 250 |
OD4 500 |
OD5 |
| dimensions according to customer requirements |
● |
● |
● |
