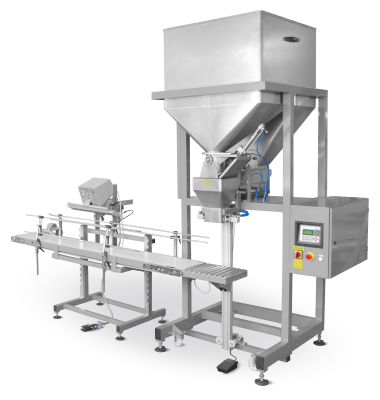

Semi-automatiske doseringsmaskiner der er designet til emballering af granulater, løse og småstyks gods i , kasser eller andre beholdere.
 |
 |
 |
 |
 |
| AV2/1r |
KL1r |
PES6 |
PES6 + OD |
PES10 |
|
 |
| Technical parameters |
|
|
|
|
|
| Machine type |
PES6 |
PES10 |
AV2/1r |
KL1r |
MD2r |
| Output* (doses/min.) |
to 10 |
to 10 |
to 30 |
to 30
|
to 30
|
| Weighing range |
5 - 50 kg |
5 - 30 kg |
6 - 7000 g |
|
|
| Dose volume of one cup (ml) |
|
|
|
85 - 1840 |
8 - 950 |
Volume of weigh hopper (l)
|
|
|
7,0 |
|
|
| Dose accuracy |
according to standard "e" |
according to standard "e" |
according to standard "e" |
according to standard "e" |
according to standard "e" |
| Hopper volume (l) |
500 |
90 |
30 |
30 |
30 |
| Power supply |
3 x 230 V/400 V - 50 Hz |
3 x 230 V/400 V - 50 Hz |
230 V - 50 Hz |
3 x 230 V/400 V - 50 Hz |
3 x 230 V/400 V - 50 Hz |
| Air consumption at 0,6 MPa (l / dose) |
0,1 |
0,35 |
0,1 |
|
|
| Noise (dB) |
75
|
78 |
75 |
60 |
60 |
| Machine weight (kg) |
300 |
450 |
250 |
100 |
100 |
| Dimensions L x H x W (mm) |
2750x3260x1854 |
2410x2130x3220 |
1885x860x1960 |
2030x1500x1025 |
1450x1590x890 |
* Output depends on dose size, kind of goods, required accuracy and skill of the operator.
| Types of packaging |
|
|
|
|
|
| Machine type |
PES6 |
PES10 |
AV2/1r |
KL1r |
MD2r |
| bags |
● |
● |
● |
● |
● |
| sacks |
● |
● |
● |
● |
● |
| boxes |
● |
● |
● |
● |
● |
| doses |
● |
● |
● |
● |
● |
| jars |
● |
● |
● |
● |
● |
| Machine description |
|
|
|
|
|
| Machine type |
PES6 |
PES10 |
AV2/1r |
KL1r |
MD2r |
| areas which are in contact with the goods are made of stainless steel |
● |
● |
● |
● |
● |
| all parts of the machine are protected health harmless surface treatment |
● |
● |
● |
● |
● |
| tensometric weighing unit |
● |
● |
● |
|
|
| one vibrating chute |
● |
|
|
|
|
| two vibrating chutes in one flow |
|
|
● |
|
|
| closing of end of vibratory chute |
● |
|
● |
|
|
| conveyor with hopper |
|
● |
|
|
|
| foot pedal or two-handed starting |
● |
● |
● |
● |
● |
| Accessories |
|
|
|
|
|
| Machine type |
PES6 |
PES10 |
AV2/1r |
KL1r |
MD2r |
| roll conveyor |
● |
● |
● |
● |
● |
| discharge conveyor OD5 |
● |
● |
● |
● |
● |
| bag closing unit holder |
● |
● |
|
|
|
| bag closing unit |
● |
● |
|
|
|
| sealer |
● |
● |
● |
● |
● |
| automatic bag closing |
● |
● |
● |
|
|
| feeding conveyor VD1 |
● |
● |
● |
● |
● |
| feeding scew conveyor VD5 |
|
|
● |
● |
● |
| Advantages |
|
|
|
|
|
| Machine type |
PES6 |
PES10 |
AV2/1r |
KL1r |
MD2r |
| automatic checking of product level in hopper |
● |
● |
● |
● |
● |
| easy and quick exchange of measuring cup |
|
|
|
● |
● |
| possibility of emptying of one or more doses at once |
|
|
|
● |
● |
| easy to use |
● |
● |
● |
● |
● |
| easy cleaning |
● |
|
● |
● |
● |
| display of the actual weight in grams |
● |
● |
● |
|
|
| automatic control of goods level in vibrating chute |
● |
● |
● |
|
|
| automatic state diagnostics |
● |
|
● |
● |
● |
| automatic tare |
● |
● |
● |
|
|
| seeting of all functions from control panel |
● |
● |
● |
● |
● |
| seeting of all functions from portable control panel |
|
|
● |
|
|
| 30 memories for various kinds of goods (name 8 symbols) |
● |
● |
● |
|
|
| world´s languages foroperating English, German, Russian and Czech |
● |
● |
● |
|
|
| two weighing modes |
|
|
● |
|
|
| counting of average dose from previous 20 doses |
|
|
● |
|
|
| possibility connection to PC |
|
|
● |
|
|
| Modification |
|
|
|
|
|
| Machine typeTyp stroje |
PES6 |
PES10 |
AV2/1r |
KL1r |
MD2r |
| possibility to connect conveyor for discharging of full sacks |
● |
● |
|
|
|
| covering |
● |
● |
● |
● |
● |
| automatic attachment of package |
● |
● |
● |
● |
● |
| for breakable and brash goods (durable pastry etc.) |
|
|
● |
|
|
| for frozen goods contra freeze (vegetable, chips) |
● |
● |
● |
|
|
| separation of abrasion packaged goods |
|
|
● |
|
|
